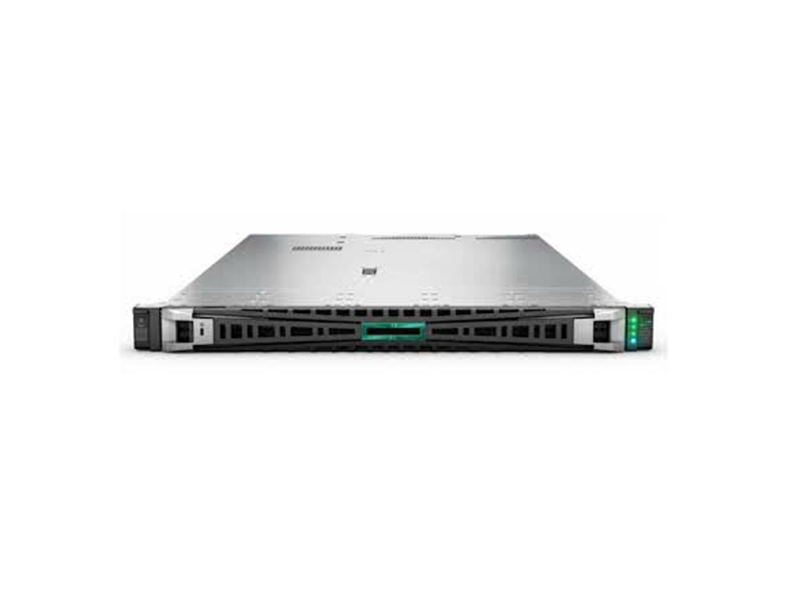

Máy chủ HPE ProLiant DL360 G12- 4LFF

Processor

Processor type: Intel

Processor family: Intel® Xeon® 6 Scalable processors

Processor number: 1 or 2

Processor core available: 8 to 144 core, depending on processor

Processor speed: 4.0 GHz maximum, depending on processor

Processor cache: 48 MB to 336 MB L3 cache, depending on processor

Server Memory

Memory type: HPE DDR5 Smart Memory

Maximum memory: 8 TB with 256 GB DDR5

Memory slots: 32 DDR5 DIMM slots (16 per processor)

Memory protection features: On-Die ECC (Error Correction Code) designed to correct bit errors within the DRAM

Server Accelerator

Accelerators: 3 Single-wide GPU in rear

Server Cooling

System fan features: Standard Fan Kit (Q’ty 5), Standard Fan Kit (Q’ty 2) for 2nd Processor, High performance Fan Kit (Q’ty 7), Close Loop Liquid Cooling Heatsink & Fan kit, Direct Liquid Cooling Solution.

Server Expansions

Expansion slots: Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each)

Server Form Factor

Form factor: 1U Rack

Server Controllers

Network controller: Optional – Minimum 1 to be selected. Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0 in rear/front). Please see QuickSpecs for network card choices.

Storage controller: Optional – HPE ProLiant Compute Smart Array Gen12 Storage Controller in Variety of protocols -including NVMe, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0); Optional – Intel® VROC Hybrid RAID for NVMe; Optional – HPE ProrLiant Compute Gen12 OS Boot Device, in rear or front accessible or internal. Please see QuickSpecs for storage controllers selection.

Server Drives

Drive supported: Up to 4 LFF SAS/SATA HDDs or SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall);
Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall);
Up to 10 SFF/20 E3.S to be mixed, optional 1 OS Boot Device (Internal, external accessible from rear wall or front cage), Optional 2 front OCP NICs

Optical drive type: Optional – HPE 9.5mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive.

Server Power

Power supply type: HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit; HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit; HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit; HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit; HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

Management Software

Infrastructure management: Included – HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download).
Optional – HPE iLO7 Advanced, and HPE OneView Advanced.

Security

Security: UEFI Secure Boot and Secure Start support.
Intel® Software Guard Extensions (SGX) support.
Immutable Silicon Root of Trust.
Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits.

Warranty

Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support

https://www.hpe.com/psnow/doc/a50006984enw.html?jumpid=in_pdp-psnow-qs
